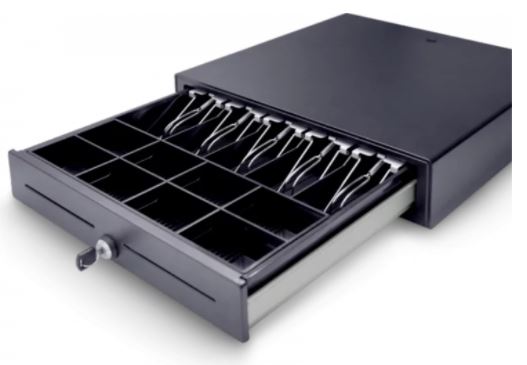

TVS Cash Drawer CD-58410G

DESCRIPTION

The CHAMP CD 58410 Cash Drawer is designed for more reliable and secure operations. It is constructed rugged with thick gauge cold rolled steel. Wear-resistant plastic rollers riding on steel guides, provides smooth and wobble-free slide. Its three-position lock with An open drawer sensors offers maximum security for the cash. An adjustable note compartment offers wobble-free to adjust the width, to accept any currency.

5 Note and 8 Coin trays
24 Volt Operation
Integrated cable with RJ12 connector
Two cheques / large bill slots
Three-position lock
Open drawer sensor

SPECIFICATIONS
Drawer Type : Standard Cash Drawer with Two media slots

Dimensions (inch) : 16.1”W X 16.3”D X 3.9”H (inch, without feet)

Packaging (mm) : 475W X 470D X 165H (mm)
Net Weight : 6.4 Kg
Gross Weight : 7.4 Kg
Color : Black
Casing : Thick gauge Electro-galvanized cold rolled coil steel
Finish : Scratch Resistant Textured Hybrid Powder Coat
Roller : Wear-resistant Plastic Rollers
Open Push : Rigid Large Sprint with Smooth Push
Material : Shatter Resistant Plastic
Currency Layout : 5 Bills, 8 Coins / Adjustable Dividers / Removable Coin Tray
Media Slot : 2
Key Lock : 20 Key Combinations; Three-Position Lock
I/O Interface : 24V for RJ11 / RJ12 for CDK Interface
Emergent Release : Emergent release lever on the chassis of drawer
Micro Switch : Cash Drawer Status Micro Switch
Durability : 1 Million Open & Close

Brand	TVS
Color	BLACK
